86 Keys Dot Matrix Ruggedized Keyboard With Backlit Marine Keyboard
DESCRIPTION:
86 keys IP67 dynamic waterproof special professional compact format keyboard with durable polymer keys.The high quality rugged aluminum alloy panel is processed by CNC. With 12 function keys(F1, F2, ... F12) on the top line of keyboard, sealed and rugged matrix PCB with carbon-on-gold key switch technology with stroke 1.0mm, which is extremely good tactile feeling for fast and accurate data input without any noise, one complete silicone rubber along the top panel for easy mounting & sealing tightly with cabinet, rear panel with through-hole for easy mounting and sealing. Adjustable backlight included ( White or Red etc). FN + Clean combination keys for easy cleaning without taking the keyboard away from PC to avoid mis-operation or mistyping. High quality durable and scratch-proof black titanium on the aluminum alloy panel, which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, salt mist etc. Dot matrix with FPC PIN without electronic controller included.
DIMENSIONS: 270.0mm(L) x 110.0mm(W) (Top Panel)
Application:
This keyboard is ideal for below wide applications:
MEDICAL: Lab, hospital, clinic, dental, such as carts, diagnostic equipment, operation rooms, dialysis centers etc;
MATERIAL HANDLING: Mobile keyboard, data entry, assembly line etc
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, warehouses, marine console, rugged
laptop
| MECHANICAL DATA: |
| Actuator/keys: | 86 keys, durable and robust polymer keys. |
| Key top style: | Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
| Actuation Force: | 1.80 N+/-0.1N for key 13.6mm x 13.6mm (pressure point ), 2.5 N+/-0.10N for key 13.6mm x 31.6mm (pressure point) |
| Switch life: | more than 5 million of operations. |
| Plate: | High quality ruggedized aluminum alloy top panel processed by CNC |
| Dimensions: | 270.0mm x 110.0mm (front panel) |
| ELECTRICAL DATA : |
| Supply Voltage: | +5V DC +/-5% |
| Current Rating: | appr. 250mA (with backlight on) |
| Lifespan | > 5 years |
| Switch Contact Material: | Carbon-on-Gold key switch technology PCB |
| Interface: | dot matrix |
| OS: | All Windows, Linux, Unix, Mac OSX, Android |
| RELIABILITY: |
| RoHS Compliant, CE and FCC, ESD |
| Protection Level: | IP67(front panel) |
| Vandal resistant | IK08 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| ENVIRONMENTAL ADAPTABILITY : |
| Operating Temperature: | -40oC to +60oC |
| Storage Temperature: | -45oC to +70oC |
| Operating RH: | 3-95% |
| Atmospheric Pressure: | 60-106Kpa |
| Damp heat test at +40oC: | 21 days, IEC 60512-6 |
| Dry heat test at + 85oC: | 10 days, IEC 60512-6 |

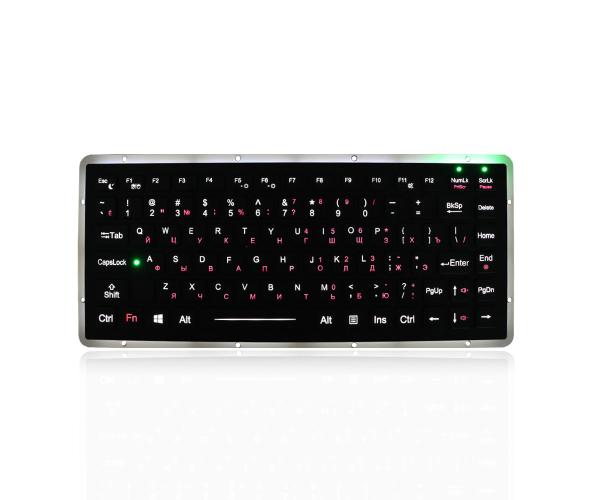

Ruggedized Keyboard Actual Photos:
Keyboard with white backlight
Back View
FAQ
Q: Are you trading company or manufacturer ?
A: We are a professional manufacturer for industry/military/medical/vehicle keyboards.
Q: How long is your delivery time?
A: Generally it is 1-2 Weeks after payment is received. If larger quantity, delivery time would be 3-5 weeks.
Q: Do you provide samples ?
A: Yes, we could offer the sample of one quantity first before large quantity orders.
Q: What is your terms of payment ?
A: 100% payment via Paypal T/T, Western Union or Alibaba Trade Assurance.
If you have another question, pls feel free to contact us.
